NVIDIA GB202

Default

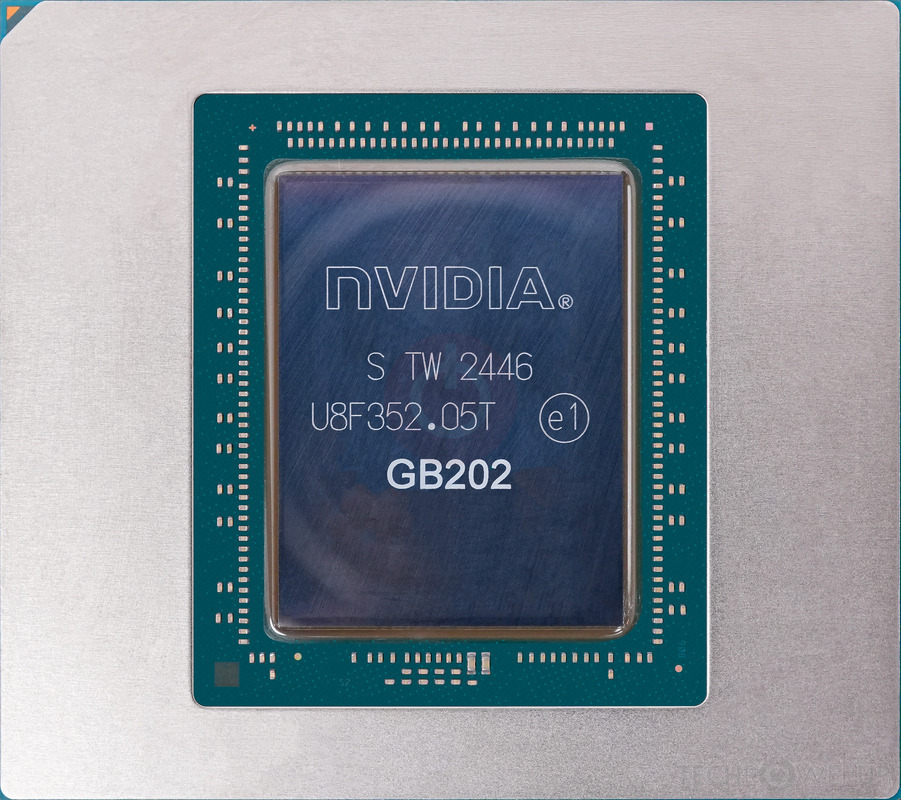

GB202

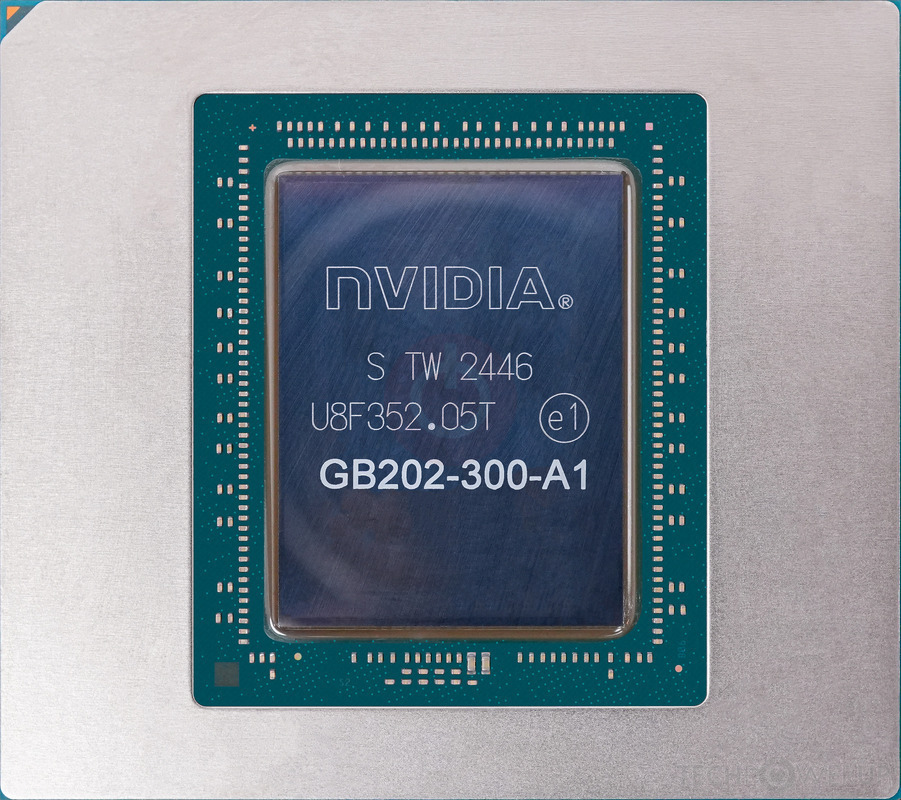

GB202-300-A1
GB202-300-A1

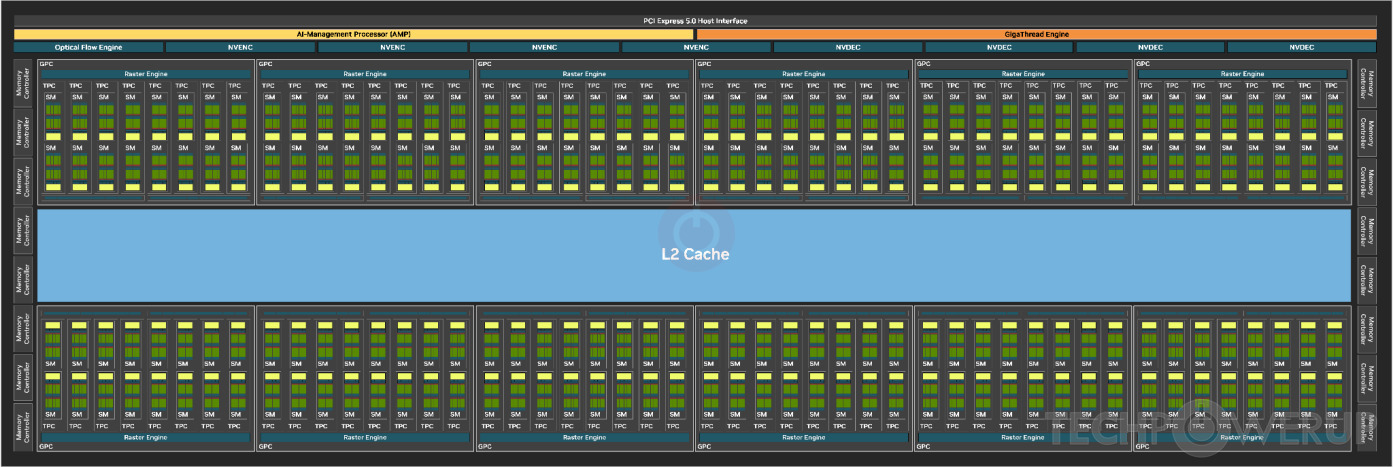

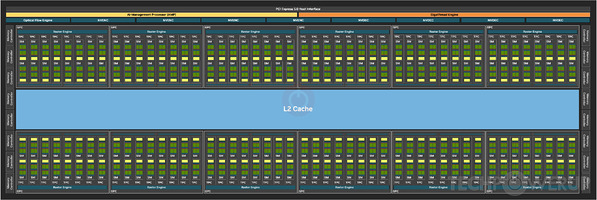

Block Diagram
Block Diagram

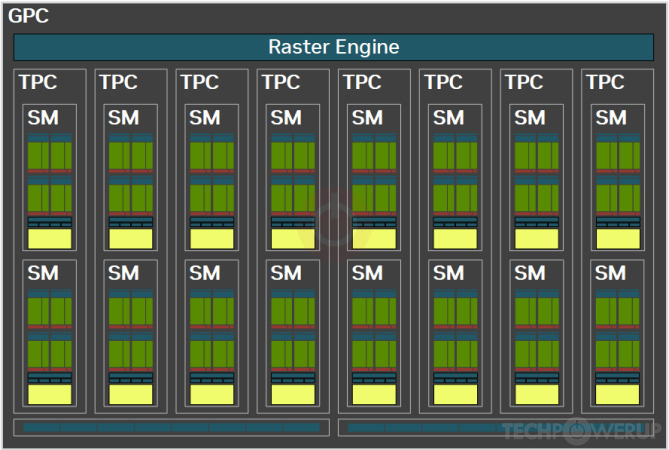

GPC Diagram
GPC Diagram

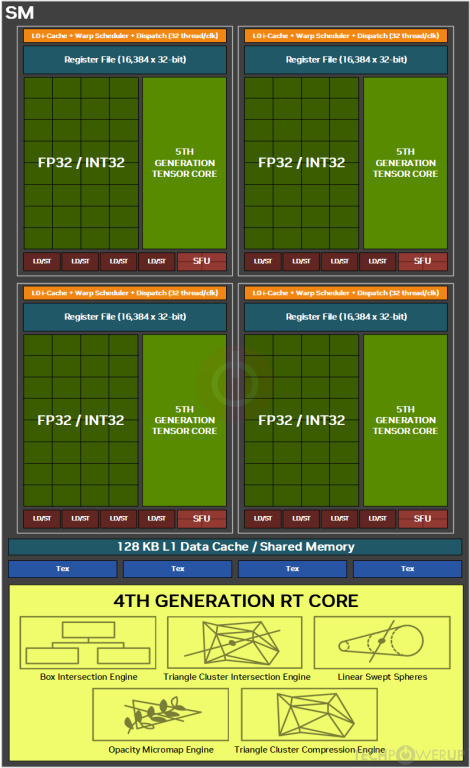

SM Diagram
SM Diagram
NVIDIA's GB202 GPU uses the Blackwell 2.0 architecture and is made using a 5 nm production process at TSMC. With a die size of 750 mm² and a transistor count of 92,200 million it is a very big chip. GB202 supports DirectX 12 Ultimate (Feature Level 12_2). For GPU compute applications, OpenCL version 3.0 and CUDA 12.0 can be used. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. It features 24576 shading units, 768 texture mapping units and 192 ROPs. Also included are 768 tensor cores which help improve the speed of machine learning applications. The GPU also contains 192 raytracing acceleration cores.
Further reading: Blackwell Architecture Whitepaper

Graphics Processor

Released
Jan 30th, 2025
GPU Name
GB202
Architecture
Blackwell 2.0
Foundry
TSMC
Process Type
4N FinFET
Process Size
5 nm
Transistors
92,200 million
Density
122.9M / mm²
Die Size
750 mm²

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.4
CUDA
12.0
Shader Model
6.8
WDDM
3.2
Tensor Cores
5th Gen
RT Cores
4th Gen
NVENC
9th Gen
NVDEC
6th Gen
PureVideo HD
VP11
VDPAU
Feature Set K

Render Config

Shading Units
24576
TMUs
768
ROPs
192
SM Count
192
FP16 Units
24576
FP64 Units
384
INT32 Units
24576
Tensor Cores
768
RT Cores
192
SFUs
3072
TPCs
96
GPCs
12
Tex L1 Cache
64 KB per SM
L1 Cache
128 KB per SM
L2 Cache
131072 KB
Max. TDP
600 W

All Blackwell 2.0 GPUs

NVIDIA GPU Architecture History

Graphics cards using the NVIDIA GB202 GPU

Name Chip Memory Shaders TMUs ROPs Base Clock Boost Clock Memory Clock
GB202-300-A1 32 GB 21760 680 176 2017 MHz 2407 MHz 1750 MHz
32 GB 21760 680 176 2017 MHz 2407 MHz 1750 MHz
96 GB 24064 752 192 1590 MHz 2617 MHz 1750 MHz
96 GB 24064 752 192 1590 MHz 2288 MHz 1750 MHz
96 GB 24064 752 192 1590 MHz 2617 MHz 1750 MHz
48 GB 14080 440 176 1590 MHz 2617 MHz 1750 MHz

GB202 GPU Notes

Ray Tracing Cores: 4th Gen
Tensor Cores: 5th Gen
NVENC: 9th Gen
NVDEC: 6th Gen
PureVideo HD: VP11
VDPAU: Feature Set K
