AMD Radeon RX 9060 XT
- Graphics Processor
- Navi 48
- Cores
- 2048
- TMUs
- 128
- ROPs
- 48
- Memory Size
- 12 GB
- Memory Type
- GDDR6
- Bus Width
- 192 bit
GPU
Recommended Gaming Resolutions:
- 1920x1080
- 2560x1440
- 3840x2160

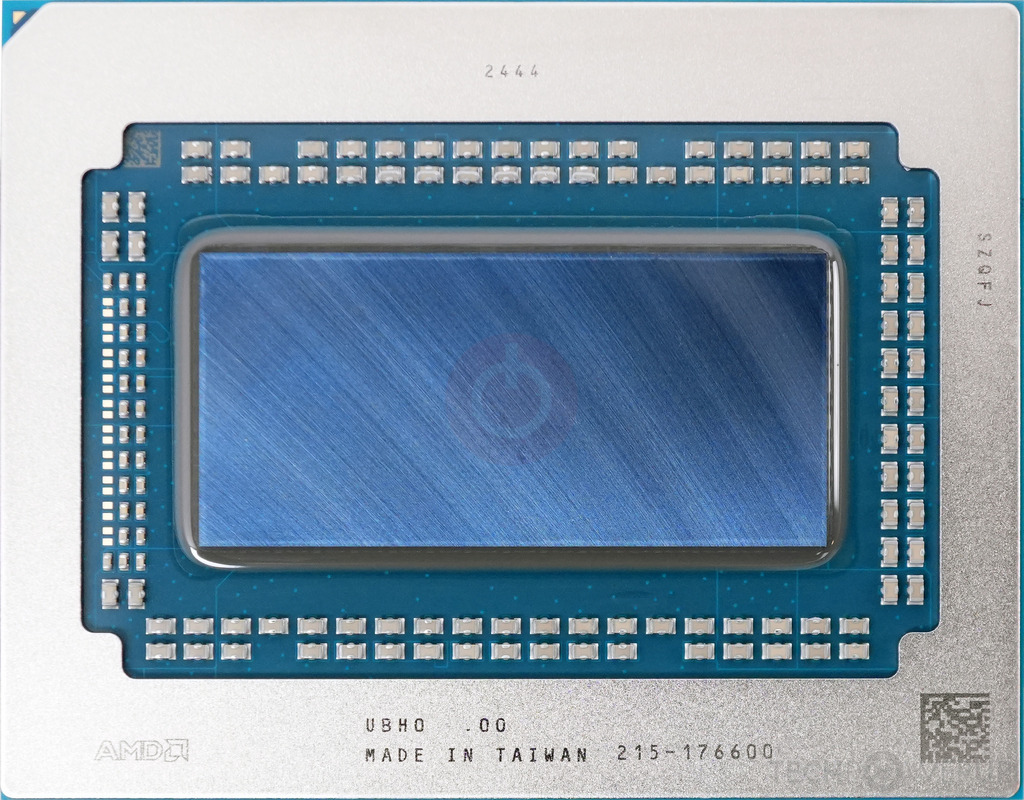

The Radeon RX 9060 XT is a graphics card by AMD. Built on the 5 nm process, and based on the Navi 48 graphics processor, in its Navi 48 LE variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on Radeon RX 9060 XT. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The Navi 48 graphics processor is a large chip with a die area of 357 mm² and 53,900 million transistors. Unlike the fully unlocked Radeon RX 9070 XT, which uses the same GPU but has all 4096 shaders enabled, AMD has disabled some shading units on the Radeon RX 9060 XT to reach the product's target shader count. It features 2048 shading units, 128 texture mapping units, and 48 ROPs. The card also has 32 raytracing acceleration cores. AMD has paired 12 GB GDDR6 memory with the Radeon RX 9060 XT, which are connected using a 192-bit memory interface. The GPU is operating at a frequency of 2220 MHz, which can be boosted up to 2790 MHz, memory is running at 2438 MHz (19.5 Gbps effective).
Being a dual-slot card, the AMD Radeon RX 9060 XT draws power from 1x 8-pin power connector, with power draw rated at 150 W maximum. Display outputs include: 1x HDMI 2.1b, 3x DisplayPort 2.1a. Radeon RX 9060 XT is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 267 mm x 111 mm x 50 mm, and it features a dual-slot cooling solution.
Being a dual-slot card, the AMD Radeon RX 9060 XT draws power from 1x 8-pin power connector, with power draw rated at 150 W maximum. Display outputs include: 1x HDMI 2.1b, 3x DisplayPort 2.1a. Radeon RX 9060 XT is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 267 mm x 111 mm x 50 mm, and it features a dual-slot cooling solution.
Graphics Processor
Graphics Card
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- Base Clock
- 2220 MHz
- Boost Clock
- 2790 MHz
- Memory Clock
-
2438 MHz
19.5 Gbps effective
Memory
- Memory Size
- 12 GB
- Memory Type
- GDDR6
- Memory Bus
- 192 bit
- Bandwidth
- 468.1 GB/s
Render Config
- Shading Units
- 2048
- TMUs
- 128
- ROPs
- 48
- Compute Units
- 32
- RT Cores
- 32
- L0 Cache
- 32 KB per WGP
- L2 Cache
- 4 MB
- L3 Cache
- 64 MB
Theoretical Performance
- Pixel Rate
- 133.9 GPixel/s
- Texture Rate
- 357.1 GTexel/s
- FP16 (half)
- 45.71 TFLOPS (2:1)
- FP32 (float)
- 22.86 TFLOPS
- FP64 (double)
- 714.2 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
- 267 mm
10.5 inches
- Width
- 111 mm
4.4 inches
- Height
- 50 mm
2 inches
- TDP
- 150 W
- Suggested PSU
- 450 W
- Outputs
- 1x HDMI 2.1b
3x DisplayPort 2.1a
- Power Connectors
- 1x 8-pin
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.2
- Vulkan
- 1.3
- Shader Model
- 6.8
Card Notes
| All specs unknown |
Navi 48 GPU Notes
| Generation: Navi IV Codename: Ray Tracing Cores: 3rd Gen Matrix Cores: 3rd Gen Infinity Cache: 3rd Gen Graphics/Compute: 12.0.1 Shader ISA: GFX12.0 (gfx1201) Display Core Next: 3.2.0 Video Core Next: 4.0.0 System DMA: 6.0.0 |
